Bus Connector
  • Bus ConnectorBus Connector

Bus Connector

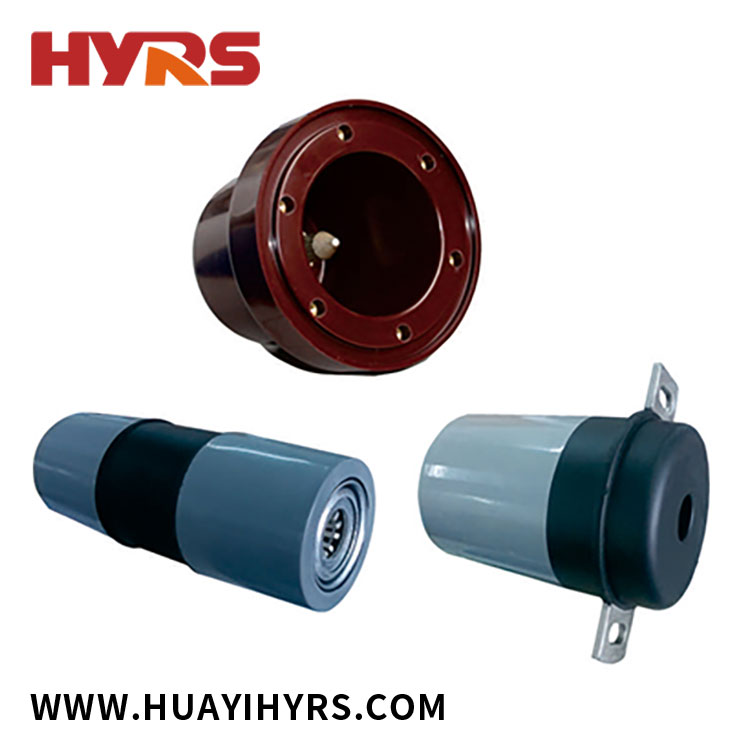

The Bus Connector is used for the top expansion connection of SF6 insulated metal switchgear, realizing full sealing and full insulation connection between the load switch and bus,completely avoiding the fatal defect brought by high voltage exposure in bad weather,and it is easy to install and high reliability.The length of the bus can be customized according to customer requirements,and the end of the bus is fixed with terminals and bushing. Suitable for electrical system with rated current up to 1250A.

Send Inquiry

Product Description

Bus Connector


1.Product Introduction


The Bus Connector is widely used for top and side expansion connection of ring network cabinet (inflatable cabinet, solid cabinet), providing multi-branch connection for the expansion of ring network cabinet. Top and side expansion bus-bar connector is the optimal scheme of combined ring network cabinet. The top/side expansion bus-bar connector consists of an insulating coat and a conductive copper piece embedded in the insulating coat. The insulation coat of the top/side expansion bus connector is made of silicon rubber insulation material with high temperature resistance and aging resistance, and the internal design is unique, so that the complex electric field is evenly distributed, resulting in excellent performance and long service life; Conductive copper parts are equipped with spring contacts, good elasticity, the use of linear contact surface design scheme, better ensure the flow capacity of the conductor. After using the bus connector, the inflatable cabinet can be expanded by any combination of connection methods. Its connection is fully shielded, fully insulated, fully sealed and fully protected, with compact structure, excellent expansibility, and excellent insulation performance and flow capacity.


Bus Connector supplier


The Bus Connector is used to connect switch cabinet, cable branch box, inlet and outlet bushing and other equipment. HUYI in accordance with the brand of cable accessories and heat shrinkable products through constant research and development of science and technology, has reached the domestic and international most advanced level, at home and abroad enjoys a high reputation, the products sell well all over the country and world. Our Bus Connector full implementation "6S" production management system, realize products zero defect, dedicated to provide customers with stable quality, reliable performance and high added value high quality products.


Bus Connector factory


Our products, including Bus Connector, have passed ISO9001: 2015 quality management system, ISO14001 environmental management system and OHSAS18001 occupational health and safety management system and the national production safety standardization certification, full implementation "6S" production management system, realize products zero defect, dedicated to provide customers with stable quality, reliable performance and high added value high quality products.

Bus Connector certificate


2.Product Parameter (Specification)


Technical Specification

Test Item

12kVParameters

24kVParameters

35kVParameters

Nominal Voltage

8.7kV

15.2kV/26.3kV

26kV/35kV

Power Frequency Withstand Voltage

42kV/1min

55kV/5min

117kV/5min

DC Withstand Voltage

53kV/15min

78kV/15min

104kV/15min

Lightning Shock Withstand Voltage

95kV

125kV

215kV

Partial Discharge Voltage <10PC

13kV

22kV

45kV


All the parameters of the Bus Connector are in conformity with the requirements and qualified. The Bus Connector is used to connect the side expansion of the ring cabinet to provide multi-branch serial connections for the expansion of the ring cabinet. PT Soft Connection is based on the cable connection by modifying the appearance of both ends of the cable end evolved.It is on the basis of the cable end on the outer surface of the semi-conductive shielding of the cable end,full sealing of the product.A plug head can be installed at the rear end of the cable head, and the front connector is usually used.PT soft connector can be customized according to customer’s actual requirements.

3.Product Feature And Application


Executive Standard
*DIN47636.7.1990 with Power cable detachable accessory set protruding from cone, dimensions of tube and separable coupling devices Um up to 35kV;
*ANSIIEEE592-1900 Exposed semiconductor sheath for high voltage cable joints and separable insulated connectors;
*IEC60502 Extruded insulated power cables and accessories for rated voltage from 1kV (Um=1.2kV) to 30kV (Um=35kV);
*IEC61442 Test method for accessories of power cables with rated voltage from 6kV (Um=7.2kV) to 30kV (Um=35kV);
*GB12706-2002 Extruded insulated power cables and their accessories for rated voltage 1kV (Um=1.2kV) to 35kV (Um=40.5kV);
*GB311.1-1997 High voltage transmission and distribution equipment insulation coordination;
*GB/41.9-1999 Technical conditions of high pressure casing;
*GB11032-2010 Ac non - gap metal oxidation arrester;

4.Product Details


The details of the Bus Connector


Bus Connector


5.Product Qualification


The Bus Connector has compact structure, small footprint, easy installation, convenient operation and maintenance free. The Bus Connector has an outdoor all-weather, fully protective structure. Suitable for high temperature, cold, flood immersion, high dust area. Fully sealed, fully insulated structure, no insulation distance, effectively ensure personal safety. The Bus Connector can be flexibly combined to make the outlet branch number up to seven, and can be combined with the load switch to form a ring network power supply, fully meet a variety of wiring requirements. The Bus Connector can be used as a switch with load plug. After installing fault indicator, cable fault can be detected quickly.


Bus Connector produce equipment


Our products, including Bus Connector, have passed ISO9001: 2015 quality management system, ISO14001 environmental management system and OHSAS18001 occupational health and safety management system and the national production safety standardization certification, full implementation "6S" production management system, realize products zero defect, dedicated to provide customers with stable quality, reliable performance and high added value high quality products.

Bus Connector test report


6.Deliver, Shipping And Serving


1. Your inquiry will be replied within 24 hours.
2. We offer you professional service in fluent English.
3. Keep the mass production as the sample in high quality
4. Freight forwarder: faster, safer, and convenient.
5. Quality: we have QC on each process,provide high quality products.
Any problem or needed please feel free let us know, we are glad to service for you
We are factory, we can provide competitive price. And all the products will be shipped after quality inspection. Usually we quote within 24 hours after we get your inquiry. If you can not buy our product in your local area, we will ship a sample to you (Please contact our agent or send email to our mailbox).


Bus Connector packing


7.FAQ

Q1: Are you a factory or trading company?
A1: We are a factory, we can provide competitive price.

Q2: How does your factory do regarding quality control?
A2: All the products will be 100% checked before the shipment.

Q3: When can I get the price?
A3: Usually we quote within 24 hours after we get your inquiry.

Q4: How could I get a sample?
A4: If you can not buy our product in your local area, we will ship a sample to you.You will be charged a sample price plus all related shipping costs.Express delivery charge depends on the quantity of the samples.

Q5: Why choose us?
A5: Welcome to our company, we are a group of creative people.
1.High quality is our obligation
2.Customer first, contact us now!
3.Great service is our mission!
4.Quality is the essence, wealth is the fruit.
5.Your opinion is the driving force of our progress.
6.A smile on your face and a service in your heart.
