15kV Insulated Cap
  • 15kV Insulated Cap15kV Insulated Cap

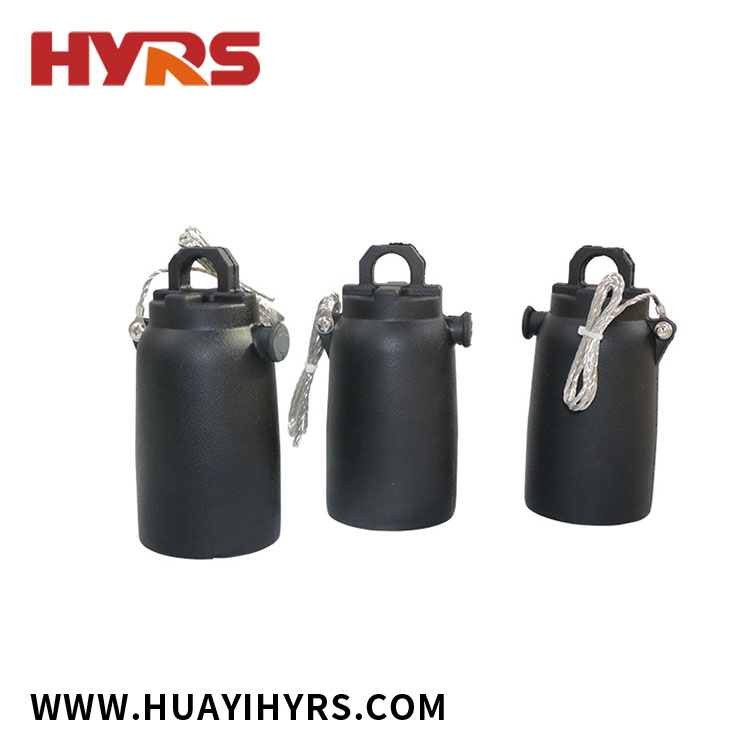

15kV Insulated Cap

The 15kV Insulated Cap is is as an attachment to the charged casing accessories, to provide insulation for charged casing insulating sleeve, to provide dust-proof and moisture-proof envelope for uncharged joint. 600A insulation cap can be installed in 600A bush, bus-bar and hanging device. When the bus-bar and cable joint reserve have a spare line, must be sealed it with the 600A insulated cap.

Send Inquiry

Product Description

15kV Insulated Cap


1.Product Introduction


The 15kV insulated cap is used to seal the bushing with t-joint removed on the reserved port of bushing or during maintenance. It is an accessory of bushing, providing full insulation and full sealing protection for live bushing, and providing dust-proof and moisture-proof sealing protection for non-live bushing. The product interface conforms to standard EN50181 c-type sleeve design. The 15kV insulated cap is made of pure copper with excellent conductivity, ductility and corrosion resistance to ensure safe use of electricity. The 15kV insulated cap adopts imported EPDM rubber, which not only has excellent electrical properties, but also excellent tear resistance, ozone resistance, oxidation resistance, corrosion resistance and other properties, high mechanical strength; The international advanced three-layer injection process effectively ensures the interface performance and minimizes partial discharge. The design of inner and outer screen makes the electric field structure more optimized. Uniform external shielding layer, grounding resistance is less than 5000Ω, effectively keep the cable end surface zero potential, to ensure the personal safety of maintenance personnel; Good thermal stability and thermodynamic performance.


15kV Insulated Cap


The 15kV Insulated Cap is used to connect switch cabinet, cable branch box, inlet and outlet bushing and other equipment. HUYI in accordance with the brand of cable accessories and heat shrinkable products through constant research and development of science and technology, has reached the domestic and international most advanced level, at home and abroad enjoys a high reputation, the products sell well all over the country and world. Our 15kV Insulated Cap full implementation "6S" production management system, realize products zero defect, dedicated to provide customers with stable quality, reliable performance and high added value high quality products.


15kV Insulated Cap factory


Our products, including 15kV Insulated Cap, have passed ISO9001: 2015 quality management system, ISO14001 environmental management system and OHSAS18001 occupational health and safety management system and the national production safety standardization certification, full implementation "6S" production management system, realize products zero defect, dedicated to provide customers with stable quality, reliable performance and high added value high quality products.

15kV Insulated Cap certificate


2.Product Parameter (Specification)


Technical Specification

Test Item

12kVParameters

24kVParameters

35kVParameters

Nominal Voltage

8.7kV

15.2kV/26.3kV

26kV/35kV

Power Frequency Withstand Voltage

42kV/1min

55kV/5min

117kV/5min

DC Withstand Voltage

53kV/15min

78kV/15min

104kV/15min

Lightning Shock Withstand Voltage

95kV

125kV

215kV

Partial Discharge Voltage <10PC

13kV

22kV

45kV


All the parameters of the 15kV Insulated Cap are in conformity with the requirements and qualified.

3.Product Feature And Application


Executive Standard
*DIN47636.7.1990 with Power cable detachable accessory set protruding from cone, dimensions of tube and separable coupling devices Um up to 35kV;
*ANSIIEEE592-1900 Exposed semiconductor sheath for high voltage cable joints and separable insulated connectors;
*IEC60502 Extruded insulated power cables and accessories for rated voltage from 1kV (Um=1.2kV) to 30kV (Um=35kV);
*IEC61442 Test method for accessories of power cables with rated voltage from 6kV (Um=7.2kV) to 30kV (Um=35kV);
*GB12706-2002 Extruded insulated power cables and their accessories for rated voltage 1kV (Um=1.2kV) to 35kV (Um=40.5kV);
*GB311.1-1997 High voltage transmission and distribution equipment insulation coordination;
*GB/41.9-1999 Technical conditions of high pressure casing;
*GB11032-2010 Ac non - gap metal oxidation arrester;

4.Product Details


The details of the 15kV Insulated Cap


15kV Insulated Cap


5.Product Qualification


The 15kV Insulated Cap has compact structure, small footprint, easy installation, convenient operation and maintenance free. The 15kV Insulated Cap has an outdoor all-weather, fully protective structure. Suitable for high temperature, cold, flood immersion, high dust area. Fully sealed, fully insulated structure, no insulation distance, effectively ensure personal safety. The 15kV Insulated Cap can be flexibly combined to make the outlet branch number up to seven, and can be combined with the load switch to form a ring network power supply, fully meet a variety of wiring requirements. The 15kV Insulated Cap can be used as a switch with load plug. After installing fault indicator, cable fault can be detected quickly.


15kV Insulated Cap equipment


Our products, including 15kV Insulated Cap, have passed ISO9001: 2015 quality management system, ISO14001 environmental management system and OHSAS18001 occupational health and safety management system and the national production safety standardization certification, full implementation "6S" production management system, realize products zero defect, dedicated to provide customers with stable quality, reliable performance and high added value high quality products.

15kV Insulated Cap test report


6.Deliver, Shipping And Serving


1. Your inquiry will be replied within 24 hours.
2. We offer you professional service in fluent English.
3. Keep the mass production as the sample in high quality
4. Freight forwarder: faster, safer, and convenient.
5. Quality: we have QC on each process,provide high quality products.
Any problem or needed please feel free let us know, we are glad to service for you
We are factory, we can provide competitive price. And all the products will be shipped after quality inspection. Usually we quote within 24 hours after we get your inquiry. If you can not buy our product in your local area, we will ship a sample to you (Please contact our agent or send email to our mailbox).


15kV Insulated Cap packing


7.FAQ

Q1: Are you a factory or trading company?
A1: We are a factory, we can provide competitive price.

Q2: How does your factory do regarding quality control?
A2: All the products will be 100% checked before the shipment.

Q3: When can I get the price?
A3: Usually we quote within 24 hours after we get your inquiry.

Q4: How could I get a sample?
A4: If you can not buy our product in your local area, we will ship a sample to you.You will be charged a sample price plus all related shipping costs.Express delivery charge depends on the quantity of the samples.

Q5: Why choose us?
A5: Welcome to our company, we are a group of creative people.
1.High quality is our obligation
2.Customer first, contact us now!
3.Great service is our mission!
4.Quality is the essence, wealth is the fruit.
5.Your opinion is the driving force of our progress.
6.A smile on your face and a service in your heart.

Hot Tags: 15kV Insulated Cap, China, Cheap, Quality, Bulk, Manufacturers, Suppliers, Factory, Quotation, In Stock
