1kV Heat Shrinkable Single Core Straight Through Joint
  • 1kV Heat Shrinkable Single Core Straight Through Joint1kV Heat Shrinkable Single Core Straight Through Joint

1kV Heat Shrinkable Single Core Straight Through Joint

Our company has been providing 1kV Heat Shrinkable Single Core Straight Through Joint, the heat shrinkable products for many years, there are agents of our company distributed in the whole range of the world, and our products are far from the UK, Japan, Singapore, Russia, India, and other more than 50 countries.

Send Inquiry

Product Description

1kV Heat Shrinkable Single Core Straight Through Joint


1.Product Introduction


The 1kV Heat Shrinkable Single Core Straight Through Joint is one of the Heat Shrinkable Products series, compared with the traditional cable accessories, the heat-shrinkable cable accessories have the characteristics of small volume, light weight, safety and reliability, and convenient installation.


1kV Heat Shrinkable Single Core Straight Through Joint wholesale


The scope of use of the 1kV Heat Shrinkable Single Core Straight Through Joint is suitable for 0.6/1kV, XLPE, rubber insulated single core power cables. And the installation environment of the 1kV Heat Shrinkable Single Core Straight Through Joint should be dust-free, with a temperature above 0℃, and a relative humidity of 75% or less. The 1kV Heat Shrinkable Single Core Straight Through Joint Installation acceptance test standards and operation supervision shall be carried out in accordance with relevant regulations. The long-term service temperature range of the 1kV Heat Shrinkable Single Core Straight Through Joint is -55℃~105℃, aging life is up to 20 years, radial shrinkage ≥50%, longitudinal shrinkage <5%, shrinkage temperature is 110℃ ~ 140℃.


1kV Heat Shrinkable Single Core Straight Through Joint factory


Our products, including 1kV Heat Shrinkable Single Core Straight Through Joint, have passed ISO9001: 2015 quality management system, ISO14001 environmental management system and OHSAS18001 occupational health and safety management system and the national production safety standardization certification, full implementation "6S" production management system, realize products zero defect, dedicated to provide customers with stable quality, reliable performance and high added value high quality products.

1kV Heat Shrinkable Single Core Straight Through Joint certificate


2.Product Parameter (Specification)


Technical Specification

Test Item

Parameters

Wet Power Frequency Withstand Voltage Test

4kV/1min

Power Frequency Withstand Voltage Test

2.4kV/4h


There are two common technical parameters for the 1kV Heat Shrinkable Single Core Straight Through Joint. As for our 1kV Heat Shrinkable Single Core Straight Through Joint, the Wet Power Frequency Withstand Voltage Test is 4kV/1min. And the Power Frequency Withstand Voltage Test is 2.4kV/4h. Both parameters of our 1kV Heat Shrinkable Single Core Straight Through Joint are qualified and excellent. So you can rest assured purchase, if you have specific parameter requirements, please contact our agents, we will help you as soon as we received your request.

The long-term service temperature range of the 1kV Heat Shrinkable Single Core Straight Through Joint is -55℃~105℃, aging life is up to 20 years, radial shrinkage ≥50%, longitudinal shrinkage <5%, shrinkage temperature is 110℃ ~ 140℃.

3.Product Feature And Application


The scope of use of the 1kV Heat Shrinkable Single Core Straight Through Joint is suitable for 0.6/1kV, XLPE, rubber insulated single core power cables. And the installation environment of the 1kV Heat Shrinkable Single Core Straight Through Joint should be dust-free, with a temperature above 0℃, and a relative humidity of 75% or less. The 1kV Heat Shrinkable Single Core Straight Through Joint Installation acceptance test standards and operation supervision shall be carried out in accordance with relevant regulations.

4.Product Details

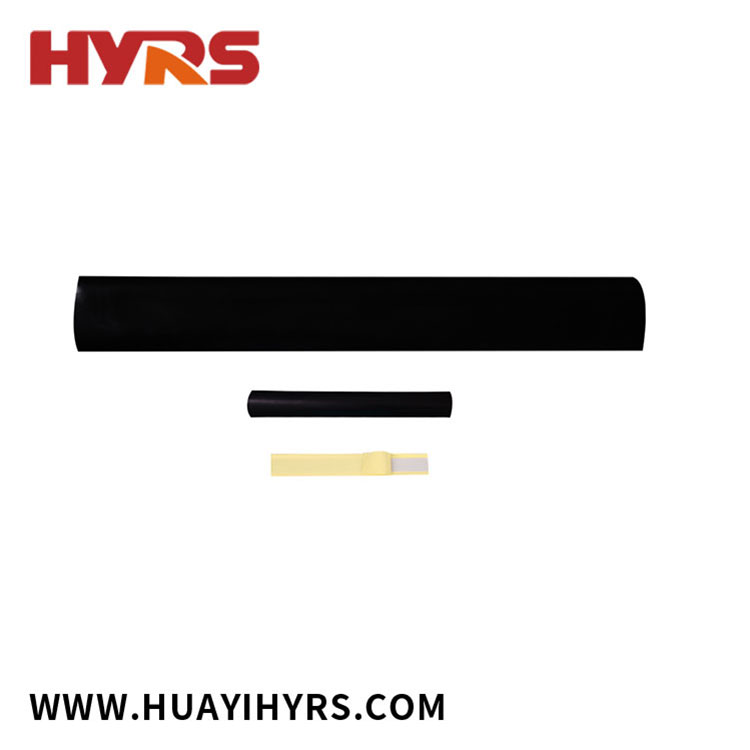

The Material list /Specific contents of the 1kV Heat Shrinkable Single Core Straight Through Joint

Item

Components

Unit

Single core

Two cores

Three cores

Four cores

Five cores

1

Insulation tube

pc

1

2

3

4

5

2

Jacket tube

pc

1

1

1

1

1

3

Filing  mastic

bag

1

1

1

1

1

4

Installation  instruction

pc

1

1

1

1

1


1kV Heat Shrinkable Single Core Straight Through Joint


5.Product Qualification


The production of heat-shrinkable cable accessories needs to go through a series of processes such as Mixing → Forming → Irradiation → Expansion → Gluing. Shape memory effect of polymer materials is the basic principle of fabricating heat-shrinkable materials. The characteristics of the polymer material itself give the heat shrinkable cable accessories with good electrical and mechanical properties, light weight, easy installation and other advantages. The product is waterproof, stress control, shielding, insulation in one, can be used in a variety of harsh environmental conditions for a long time. Widely used in Electric Power Industry, Petroleum Industry, Chemical Industry, Metallurgy, Railway, Port, Construction and other fields.


1kV Heat Shrinkable Single Core Straight Through Joint produce equipment


Our products, including 1kV Heat Shrinkable Single Core Straight Through Joint, have passed ISO9001: 2015 quality management system, ISO14001 environmental management system and OHSAS18001 occupational health and safety management system and the national production safety standardization certification, full implementation "6S" production management system, realize products zero defect, dedicated to provide customers with stable quality, reliable performance and high added value high quality products.

1kV Heat Shrinkable Single Core Straight Through Joint test report


6.Deliver, Shipping And Serving


1. Your inquiry will be replied within 24 hours.
2. We offer you professional service in fluent English.
3. Keep the mass production as the sample in high quality
4. Freight forwarder: faster, safer, and convenient.
5. Quality: we have QC on each process,provide high quality products.
Any problem or needed please feel free let us know, we are glad to service for you
We are factory, we can provide competitive price. And all the products will be shipped after quality inspection. Usually we quote within 24 hours after we get your inquiry. If you can not buy our product in your local area, we will ship a sample to you (Please contact our agent or send email to our mailbox).

1kV Heat Shrinkable Single Core Straight Through Joint packing


7.FAQ

Q1: Are you a factory or trading company?
A1: We are a factory, we can provide competitive price.

Q2: How does your factory do regarding quality control?
A2: All the products will be 100% checked before the shipment.

Q3: When can I get the price?
A3: Usually we quote within 24 hours after we get your inquiry.

Q4: How could I get a sample?
A4: If you can not buy our product in your local area, we will ship a sample to you.You will be charged a sample price plus all related shipping costs.Express delivery charge depends on the quantity of the samples.

Q5: Why choose us?
A5: Welcome to our company, we are a group of creative people.
1.High quality is our obligation
2.Customer first, contact us now!
3.Great service is our mission!
4.Quality is the essence, wealth is the fruit.
5.Your opinion is the driving force of our progress.
6.A smile on your face and a service in your heart.
